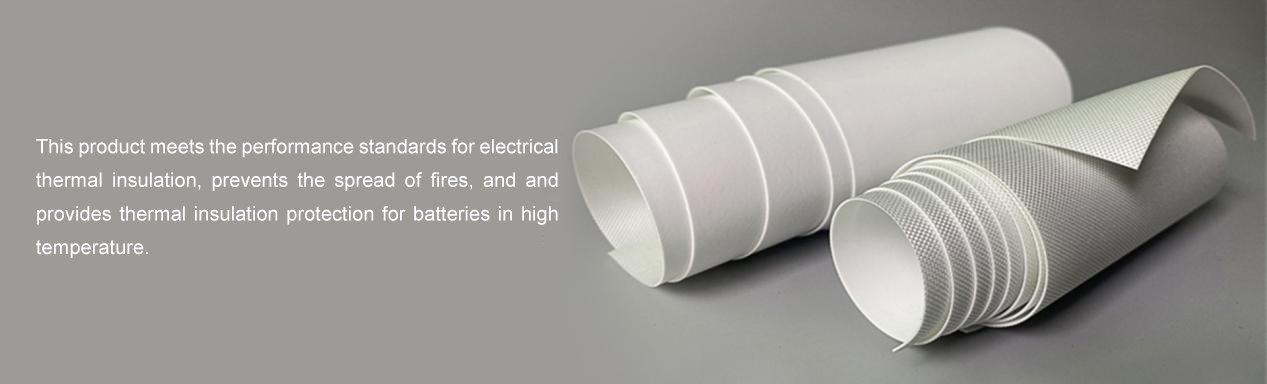

Ceramic Fire-resistance and Insulation Tape
This product can be used outside the power battery module to provide thermal insulation protection for batteries in high temperature.
- OVERVIEW
- PRODUCT PARAMETERS
- APPLICATION FIELD
-
Advantages
The ceramic silicone rubber in the product forms a hard ceramic shell when sprayed with butane fire at temperatures above 1000℃, and the ceramic composite tape is only burnt through after a full 10 minutes of fire spraying.
Product Features
| ltem | Technical Index | Standard | |
| Density | ≤1.7g/cm³ | GB/T533-2008 | |
| Hardness | HA60±10 | GB/T531.1-2008 | |
| Fire Retardant Class | V-0 | UL94 | |
| Current Threshold | 2700VDC, 60s：≤0.1mA@25℃ | IEC 64243 | |
| Thermal Insulation Resistance | 1000VDC, 60s：≥500MΩ@25°C ≥1MΩ@800℃ | GB/T10581-2006 | |
Volume Resistivity | >1X1014Ω·cm | GB/T1410-2006 | |
Dielectric Strength | >20kV/mm | ASTM D149 | |
| Prohibited Substances | RoHS compliant | RoHS | |
Application Field
Ceramic Fire-resistance and Insulation Tape is a high temperature resistant and fireproof thermal insulation material compounded by ceramic silicone rubber and glass fiber cloth. In the case of fire, the silicone rubber can be ceramic to prevent fires while also ensuring that the electrical thermal insulation performance meets the standard.
